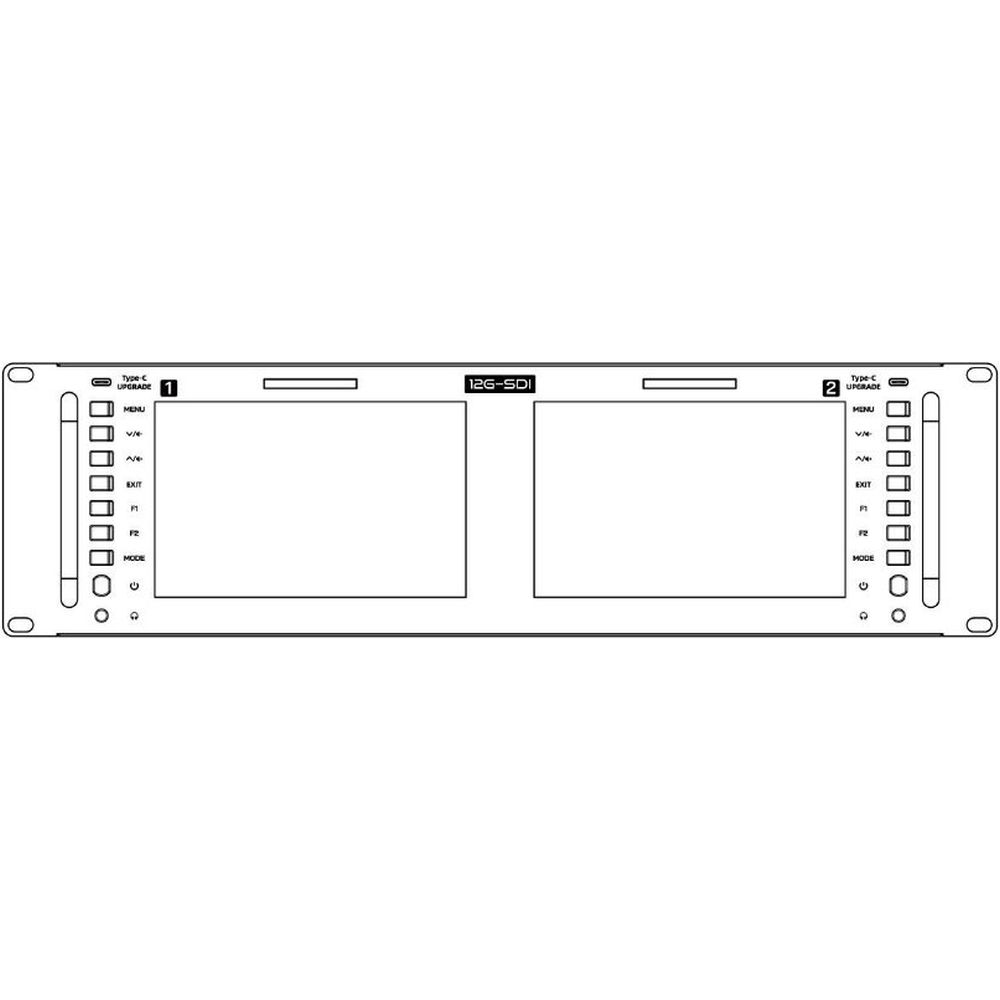

SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI

Article number:

12563711

SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI
SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI
  • SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI
€1089,99
On order
SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI
SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI
€1089,99

Get notified

    Free delivery on orders over €39

    Never overpay – a fair price every day
    Rated 4.38 by 33,328 photographers

    Your photo and video specialist since 1995
The SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI is a multifunctional colour LCD monitor for dual rackmount installation, suitable for photography, broadcasting and other media applications.

SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI

The SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI is a multifunctional dual rackmount colour LCD monitor, suitable for photography, broadcasting and other media applications. This monitor uses dedicated digital signal processing circuits and a professional IPS LCD screen, offering advantages such as low power consumption, stable performance, no radiation, strong compatibility and adjustable colour temperature control. It is an ideal monitor for non-linear editing.

This monitor features a 12G-SDI single-link digital serial interface, supporting data transfer speeds of up to 12 Gbps, high-definition multimedia interfaces (HDMI), composite video (CVBS) and other input and output signals to meet a wide range of user needs.

Information on the EU General Product Safety Regulation (GPSR)

Disnet B.V.

Bathoorn 4b, 9411 SE Beilen, The Netherlands

Features of the SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI

  • Waveform: RGB, YUV, Greyscale
  • Vector graphics
  • Histogram: RGB1, RGB2, Greyscale
  • Custom 3D-LUT (up to 32)
  • Assisted focus
  • Screen centre mark settings (crosshair marking)
  • Safety frame markings: 80%, 85%, 90%, 93%, 96%, 2.35:1
  • Image freeze function: Freezes the current image
  • Image flip selection: Selectable flip (global flip), horizontal flip, vertical flip
  • Monochrome display: Colour selection for image display: Black and white, Red, Green, Blue
  • Display pixels and screen pixels: Dot-by-dot display
  • Screen aspect ratio adjustment (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full screen)
  • Image scaling settings: Global scaling, vertical scaling, horizontal scaling
  • Panel button function adjustment settings (F1, F2)
  • LED backlight for brighter, flicker-free image
  • Stereo headphone output on front panel
  • Loop-through output for greater flexibility in applications
  • Ethernet connection for menu and function settings on the monitor

In the Box

  • 1x SEETEC FRM701G Dual 7" 3RU Rackmount Monitor with 12G-SDI
Connections & Connectivity
12G-SDI
HDMI version HDMI 2.0
Inputs 12G-SDI
SDI input
SDI output
Audio 3.5mm
Ethernet
HDMI 1.4
HDMI 2.0
HDMI 2.1
Other (connection) 12G-SDI in en loop-out (BNC) per LCD
Dimensions & Weight
Length (mm) 30.5 mm
Weight (g) 1890.0 g
Width (mm) 482.6 mm
Height (mm) 132.0 mm
Display & Viewing
Cross conversion
Brightness (nits) 450.0 nits
Quadview/PiP
Screen size (in) 7.0 in
Scopes (waveform/vectorscope)
Touchscreen
Aspect ratio 16:10
Contrast ratio 1200:1
Built-in speakers
Panel type IPS
Recording & Codecs
LUT support
Sensor
Resolution Other
Power
Mains
Battery
