DJI Zenmuse L2

DJI Zenmuse L2

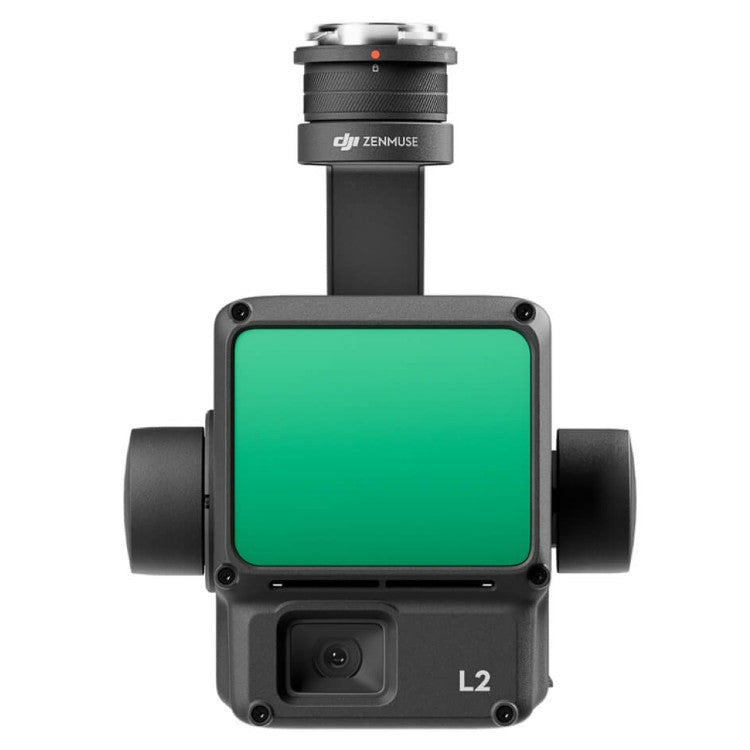

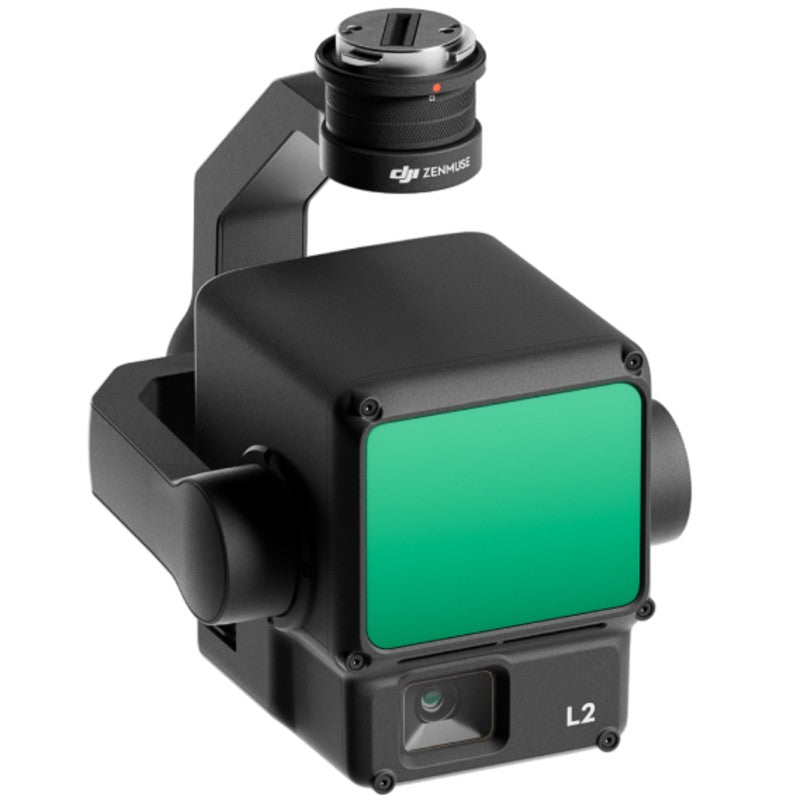

With the DJI Zenmuse L2, you bring a powerful LiDAR system into your toolkit for professional aerial data collection. This system combines frame-based LiDAR, a high-accuracy IMU system developed by DJI and a 4/3 CMOS RGB camera. This allows you to collect precise, efficient and reliable geographic data for applications such as surveying, infrastructure inspection and terrain modelling. In combination with DJI Terra, the Zenmuse L2 offers a complete solution for 3D data collection and accurate post-processing.

The Zenmuse L2 is developed for users who need maximum precision and efficiency. The system has a horizontal accuracy of 5 cm and a vertical accuracy of 4 cm at 150 metres. You can also capture an area of up to 2,5 km² in a single flight. This makes the system highly suitable for projects where speed and measurement accuracy are important. Technically, this system is also highly advanced. The LiDAR supports up to five returns, has a point cloud density of up to 1.200.000 points per second with multiple returns and reaches a detection range of up to 450 metres under favourable conditions. Thanks to smaller laser points and high penetration capability, you can also capture complex structures, vegetation and elevation data accurately. In addition, the system supports real-time point cloud colouring based on reflectivity, height, distance or RGB, giving you more direct insight into the collected data while working.

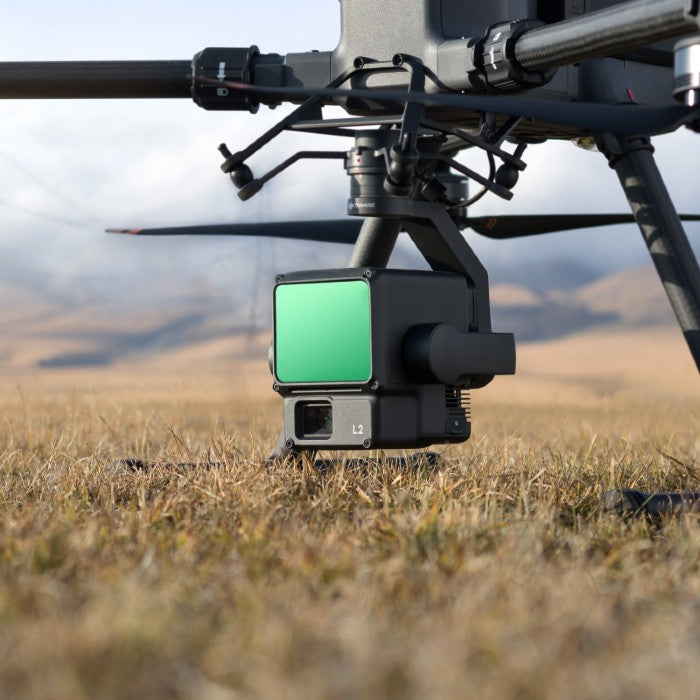

The built-in RGB camera is equipped with a 4/3 CMOS sensor of 20 megapixels and a mechanical shutter. This allows you not only to capture accurate LiDAR data, but also to create sharp mapping images for photogrammetry and visual documentation. The Zenmuse L2 is compatible with the DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK, with the latter platform requiring a DJI RC Plus. Thanks to its IP54 rating, this system is also suitable for professional use in challenging conditions.
