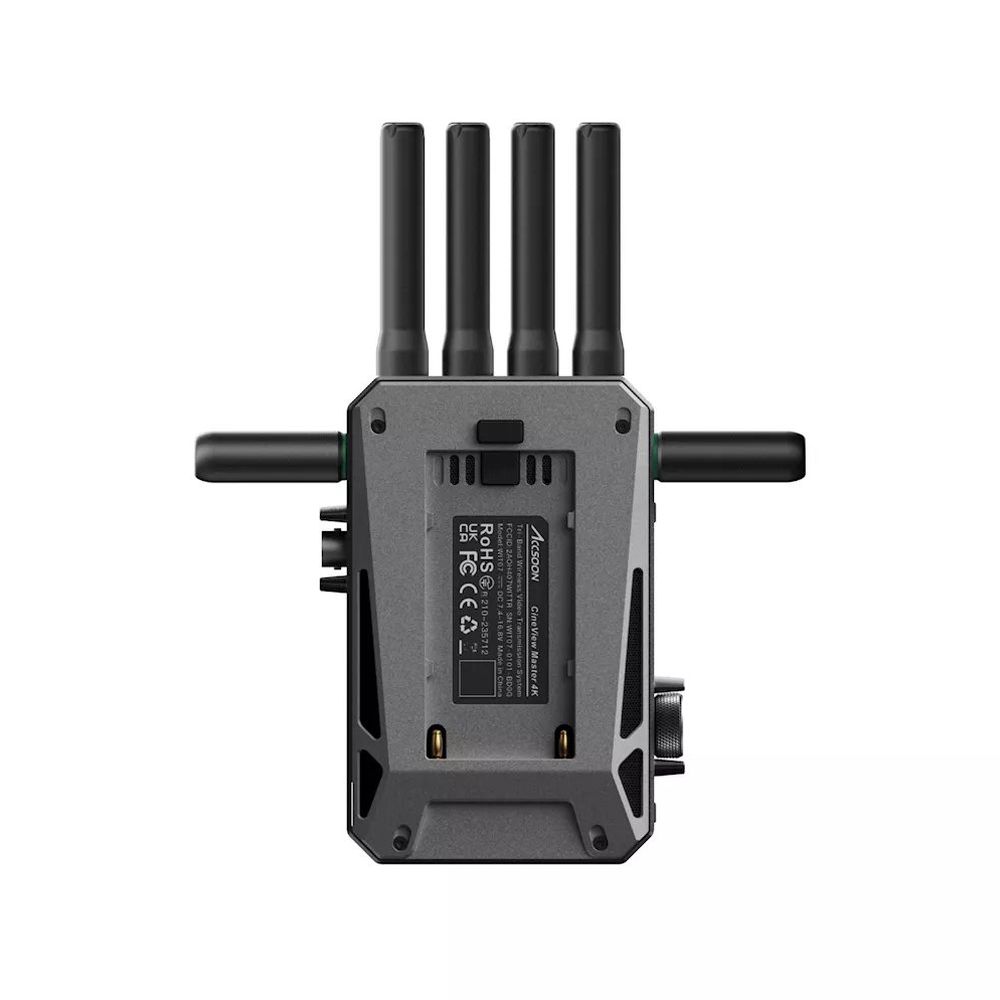

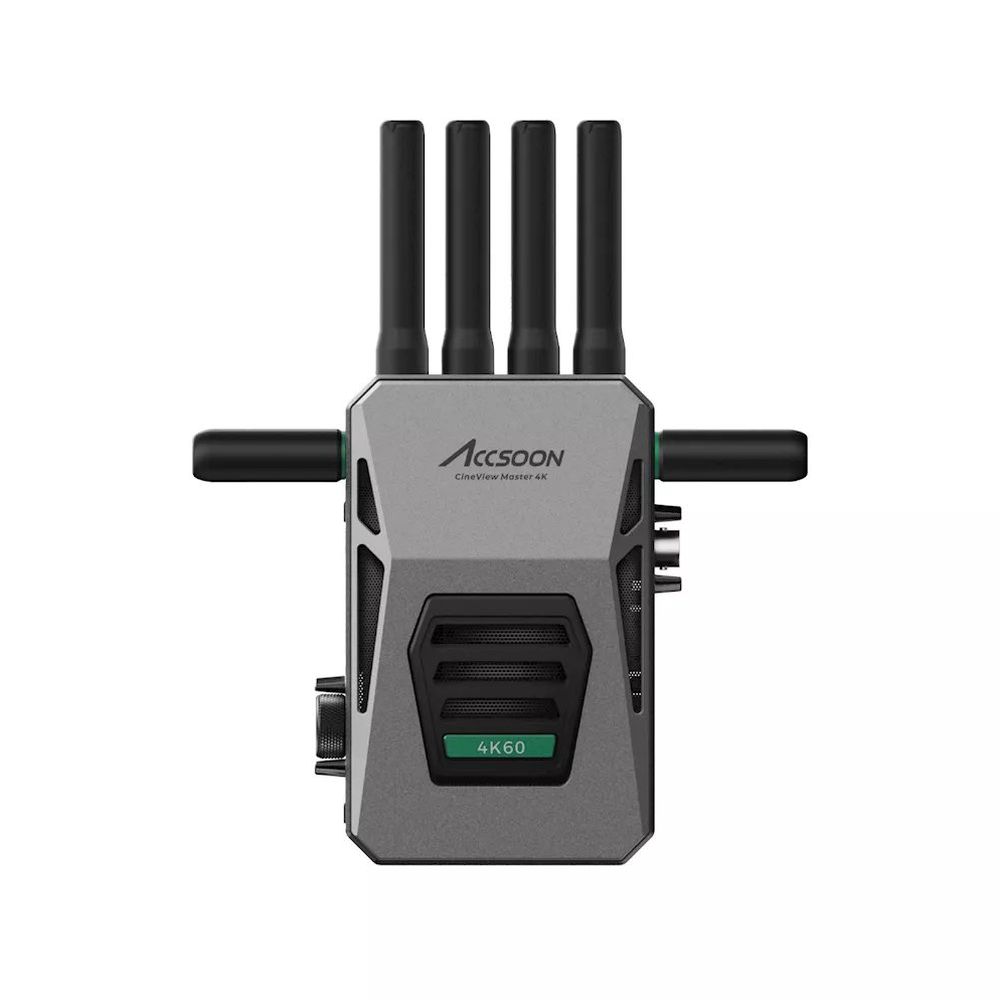

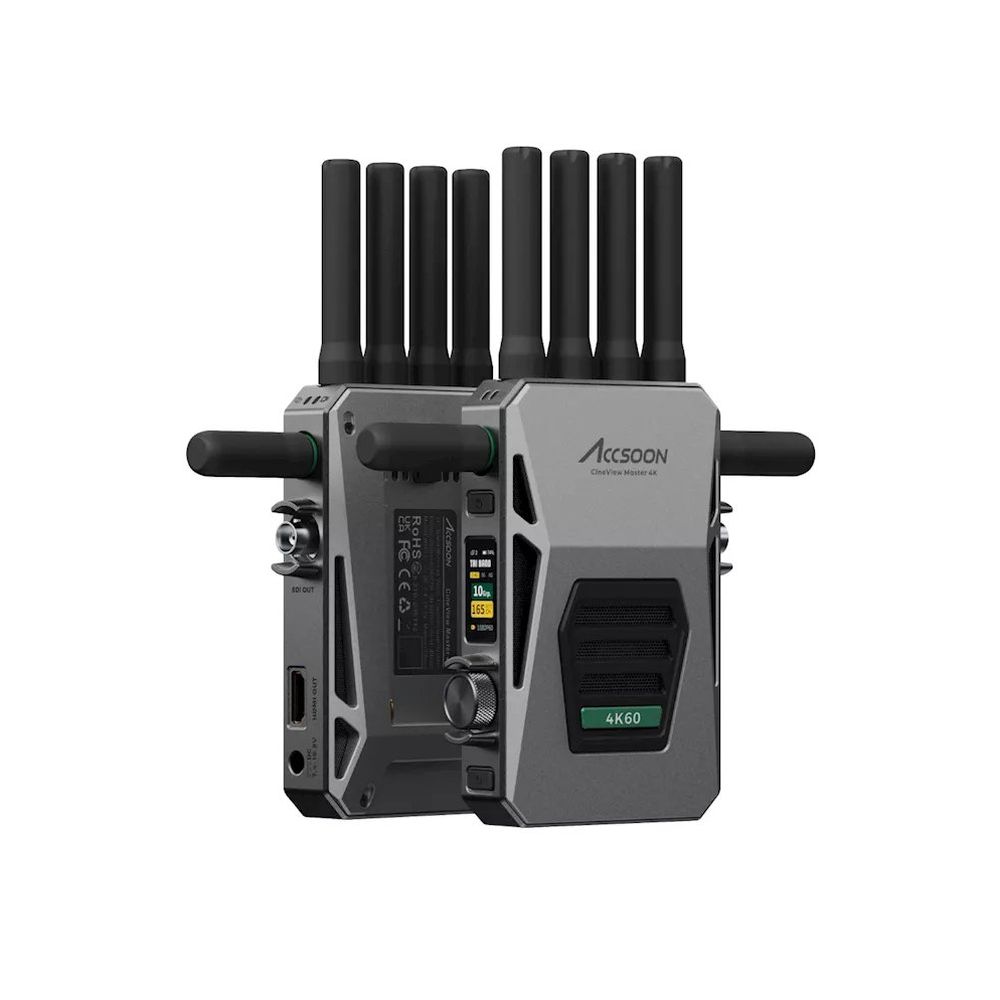

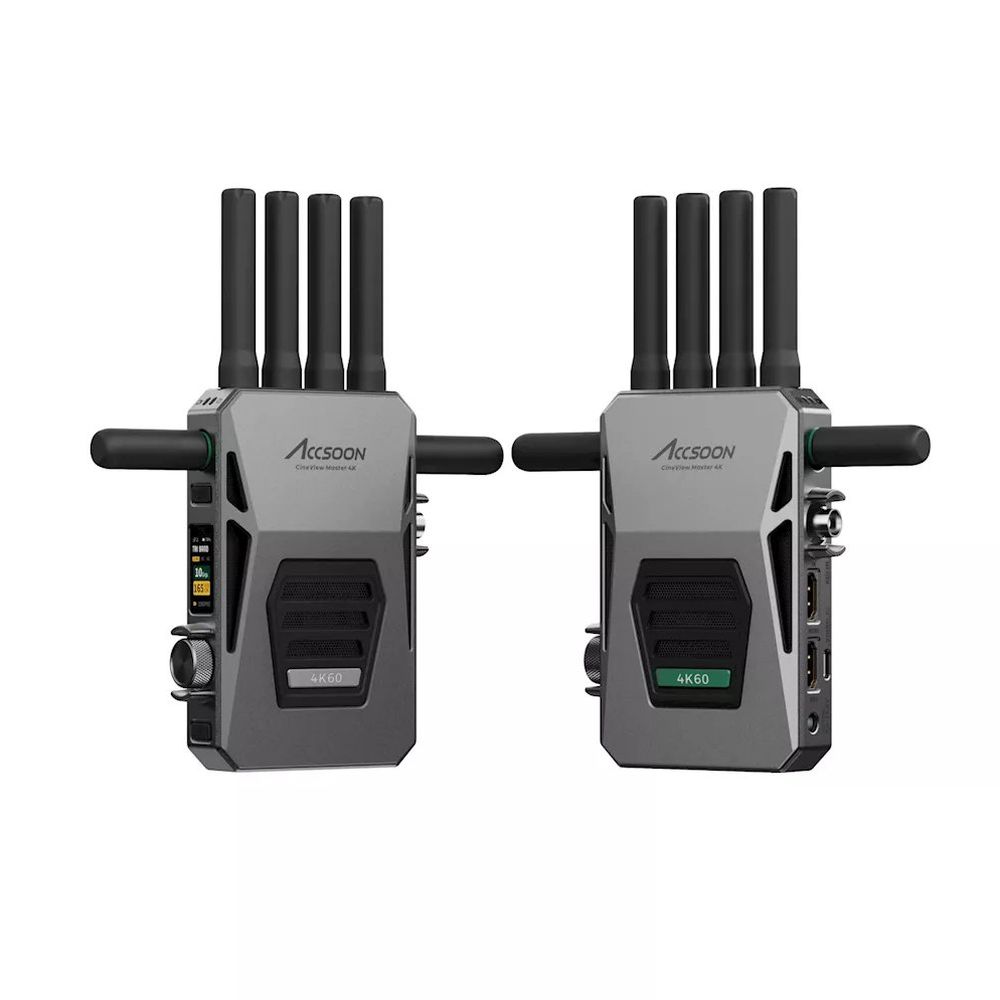

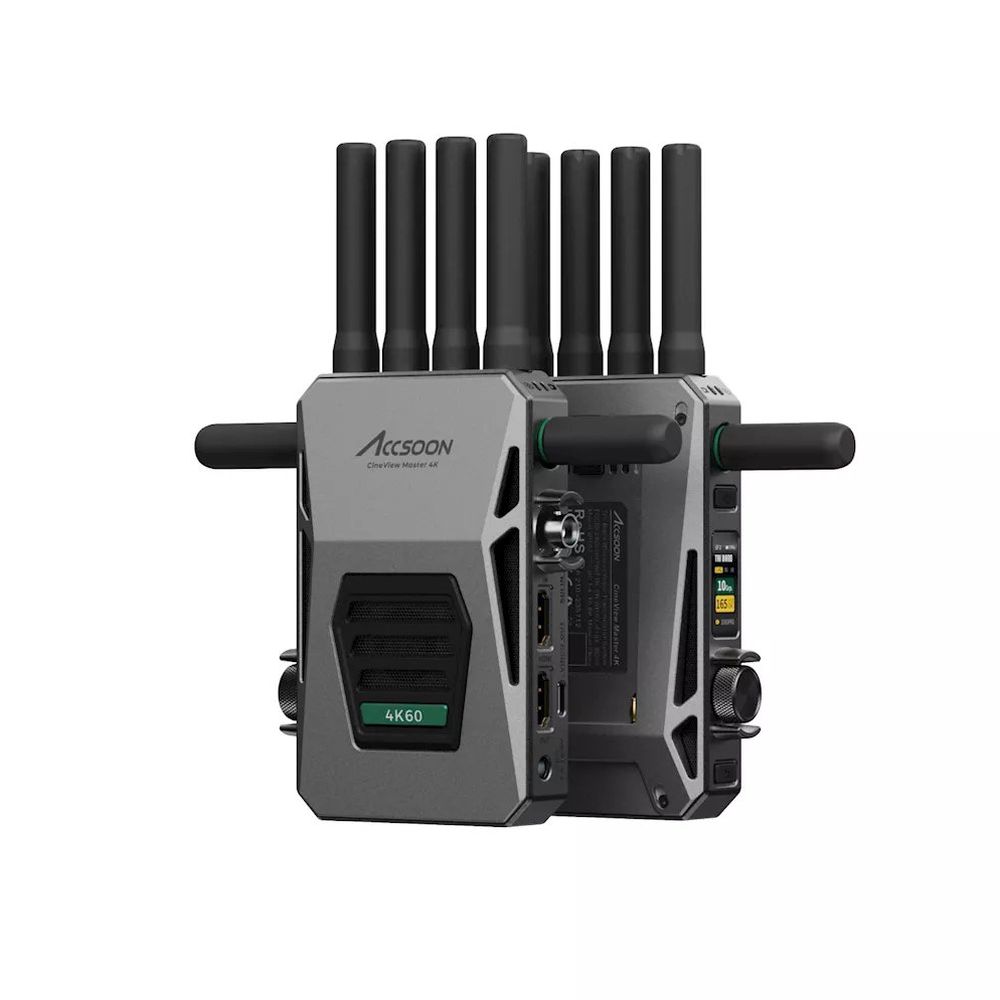

Accsoon CineView Master 4K
The Accsoon CineView Master 4K wireless system is a breakthrough innovation in the world of wireless video. It offers true 4K 60P transmission, with tri-band (2.4 GHz + 5 GHz + 6 GHz) and DFS wireless transmission, and a best-in-class latency of only 25 ms. With an extended range of 2.5 km and the ability to monitor on up to 5 devices, this system is perfect for various applications. The transmitter (TX) unit offers SDI and HDMI inputs, as well as an HDMI loop-out and MFi-certified USB video output to iPhone/iPad. The receiver (RX) unit can output SDI and HDMI simultaneously, and monitoring can be done via the Accsoon SEE app.
The CineView Master 4K also features an 8K high-performance A/V processor, powered by DC input or NP-F batteries. It is compatible with the Accsoon V-mount battery adapter and features intelligent, silent heat dissipation. Made of aerospace-grade aluminium alloy, it also has a 1.05-inch full-colour LCD screen. This system offers a series of world firsts, including the first tri-band wireless video system, the first 4K 60P Wi-Fi-based video transmission system and the first Wi-Fi system with less than 25 ms latency. With its ability to process 4K 60P video, connect up to 5 devices and use Accerson's innovative SeeMo technology for professional monitoring and streaming, the CineView Master 4K is a game changer for video on set.
Transmitter features (TX)
- A/V processor: 8K High Performance A/V processor
- Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
- Video input: HDMI, 3G SDI HDMI
- Video output: HDMI Loop-Out, USB video output (to iOS)
- SDI input format: 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps Level A/B, 1080i: 50/59.94/60i
- HDMI input format: 4K (3840\*2160): 23.98/24/25/29.97/30/50/59.94/60p
- 1080p: 23,98/24/25/29,97/30/50/59,94/60p
- 1080i: 50/59.94/60i
- HDMI Loop-out format: Identical to HDMI video input
- DC port 5.5 mm x 2.1 mm, centre-positive
- DC voltage: 7.4-16.8 V
- Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
- Power consumption: Average 6.5 W (\*Without powering other devices)
- Audio: HDMI embedded, SDI embedded
- Latency: 1080p < 25 ms
- 4K < 35 ms (Camera latency not included)
- Transmission range: ≥ 2.5 km (no obstacles, no interference)
- Operating temperature: -10 - 40 °C
- Dimensions (antennas not included): 130 x 95 x 32 mm
- Weight (antennas not included): 322 grams
Receiver features (RX)
- A/V processor: 8K High Performance A/V processor
- Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
- Video output: HDMI3G SDI
- SDI output format: 1080p: 24/25/30/50/60p Level A
- 1080i: 50/60i
- HDMI output format: 4K (3840\*2160): 24/25/30/50/60p
- 1080p: 24/25/30/50/60p
- 1080i: 50/60i
- HDMI loop-out format: Identical to HDMI video input
- DC port: 5.5 mm x 2.1 mm, centre-positive
- DC voltage: 7.4-16.8V
- Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
- Power consumption: 5.0W on average
- Audio: HDMI embedded, SDI embedded
- Latency: 1080p < 25ms
- 4K < 35ms (Camera latency not included)
- Transmission range: ≥ 2.5 km (no obstacles, no interference)
- Operating temperature: -10 - 40°C
- Dimensions (antennas not included): 130 x 95 x 32 mm
- Weight (antennas not included): 320 grams
